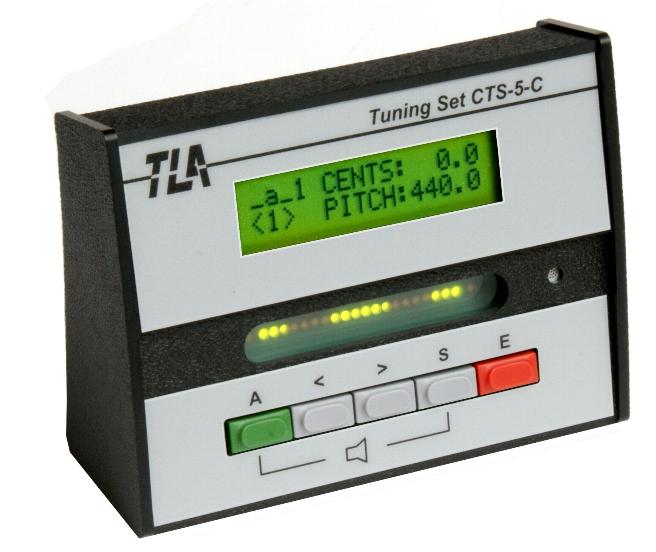

CTS-5-CA The classic
The classic among the CTS tuners, the CTS-5-C, has been updated and is now called CTS-5-CA. Inexpensive despite all the features of a professional tool.
Updated in 2020, the instrument continues to operate with a very high accuracy of 0.1 cents (1/1000 semitone step). Display is illuminated, making it easy to read when used in dark corners. Fixed programmed are now 70 common historical tunings/temperaments. Furthermore, the instrument has a freely programmable program location for your own tuning system. This allows you to either save an existing temperament or to fix a modified historical temperament for your tuning practice for the future.
Newly, the instrument is now equipped with 4 rechargeable batteries that can be charged in the instrument with the included power supply. With one charge you can work 16 - 20 hours independent of the mains. Housing in proven form also for safe standing.
Please note the available brochures and data sheets also in comparison to the other CTS tuners.
Professional tuner for normal tuning work with the very accurate stroboscope display. The high accuracy of this tuner can be read optimally. Very good comfortable operation by buttons and LCD display. Display languages D; E; F and I switchable. Furthermore, the sidetone can be switched on or off at any time. It is also possible to switch from automatic tone recognition to manual input via the A key. For the tuning of upright and grand pianos, 5 tuning curves are permanently programmed, which automatically take into account the inharmonicity of the strings.
Tuner incl. power supply is delivered in a sturdy beech wood case.
For permanent pressing of the manual keys we can offer you a key holding block. Further we offer the so called automatic keypress. For more information, please click on the colored term and you will be redirected to our corresponding article page.
Overview of some technical data in comparison:
| TUNING SET | CTS-5-CA | CTS-7-P | CTS-7-PE | CTS-32-L |
| Range | 8 octaves | 9.5 octaves | 9.5 octaves | 9.5 octaves |
| Frequency range | 27.5 - 7500 Hz | 20 - 14000 Hz | 20 - 14000 Hz | 20 - 14000 Hz |
| Accuracy of the nominal frequency | 0,1 cent | 0,1 cent | 0,1 cent | 0,1 cent |
| Cent setting | +/- 100 cents | +/- 100 cents | +/- 100 cents | +/- 150 cents |
| Cent resolution | 0.5 cent | 0,1 cent | 0,1 cent | 0,1 cent |
| Concert pitch setting | 380 - 480 Hz | 220 - 880 Hz | 220 - 880 Hz | 220 - 880 Hz |
| Chamber tone resolution | 0.1 Hz | 0.01 Hz | 0.01 Hz | 0,01 Hz |
| Volume of sidetone | 1 level | 2 levels | 2 levels + active box | 7 levels + active box |
| Connection ext. microphone | jack 3,5 mm | jack 3,5 mm | jack 3,5 mm | jack 3,5 mm |
| LCD display | 16 x 2 characters | 16 x 2 characters | 16 x 2 characters | 40 x 2 characters |
| Memory Instrument progr. | no | 52 x 114 tones | 52 x 114 tones | 70 x 114 tones |
| Memory hist. Temperatures | 1 x 12 tones | 53 x 12 tones | 53 x 12 tones | 53 x 12 tones |
| Input thermosensor | Yes for TS 7 PE | Yes for TS 32 L | ||
| Power supply | Battery + mains/charger | Battery + mains/charger | Battery + mains/charger | Battery + mains/charger |
| Battery/rechargeable battery | 4 x battery included | 4 x rechargeable battery NiMh 2000 mAh | are included | are included |
| Operating time of one charge | approx. 16 hours | approx. 12 hours | approx. 12 hours | approx. 12 hours |
| Mains/charger | 7.5 V 200 mA DC stab. | 7.5 V 350 mA DC stab. | 7.5 V 350 mA DC stab. | 7.5 V 350 mA DC stab. |
| Dimension | 180x100x45 mm 240 g | 160x75x50 mm 400 g | 160x75x50 mm 410 g | 197x84x45 mm 810 g |
Further information also in the clickable brochure
www.tuning-set.de Prospectus for the CTS-5 CA CTS complete brochure
